E-commerce Recommendation Pipeline Example

This Proof-of-Concept (POC) demonstrates a multi-agent pipeline for generating personalized e-commerce product recommendations.

Overview

The pipeline simulates a common e-commerce scenario where user behavior, product information, and current trends are combined to suggest relevant products. It showcases how specialized agents can collaborate within the AgentVault framework.

Workflow Diagram

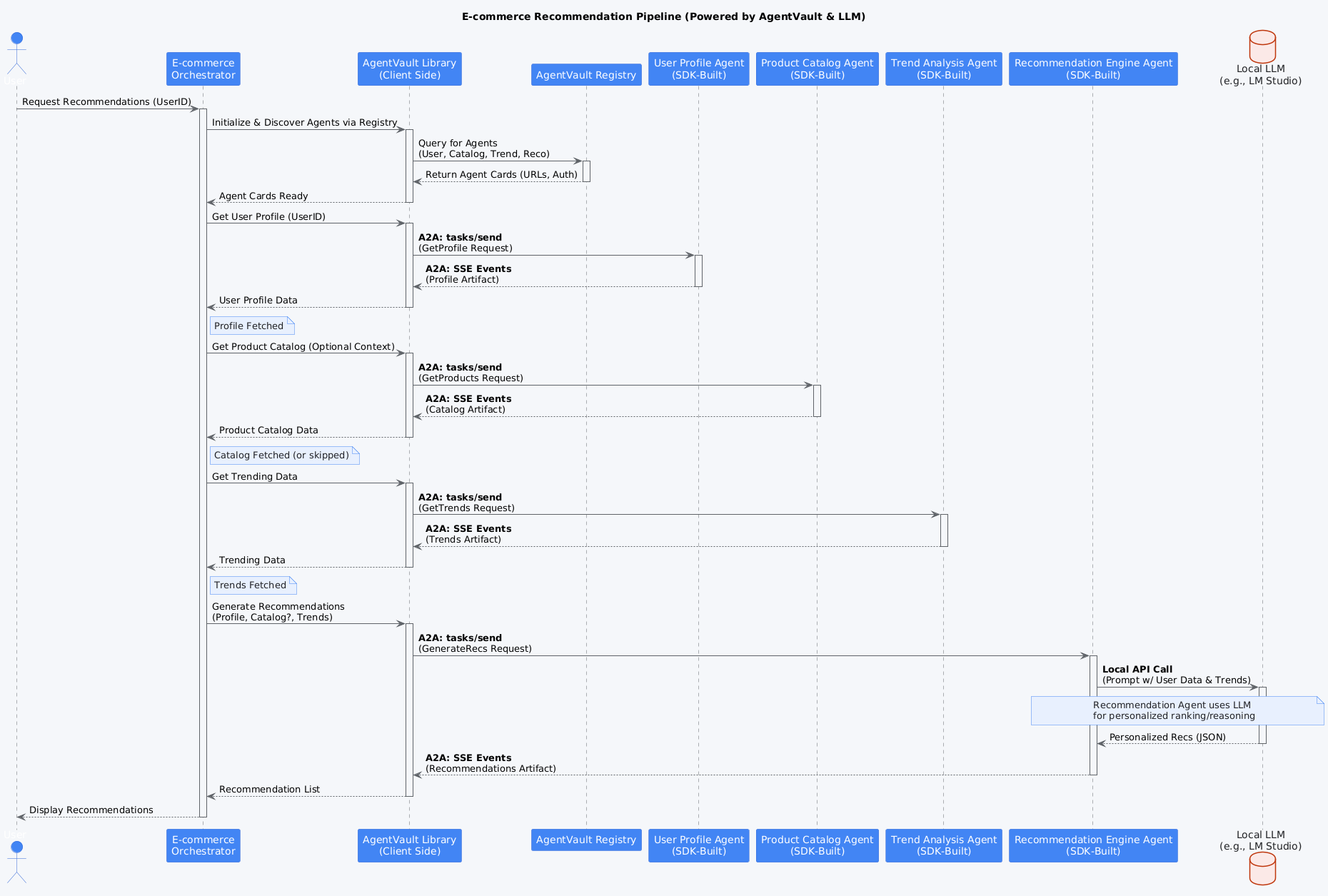

This diagram shows the flow where the orchestrator gathers context from profile, catalog, and trend agents before calling the recommendation engine.

E-commerce Pipeline Workflow Diagram (Diagram illustrating the flow: Orchestrator calls User Profile, Product Catalog, and Trend Analysis agents, aggregates the context, and then calls the Recommendation Engine.)

Workflow Steps

  1. Orchestrator (ecommerce_orchestrator) -> User Profile Agent (local-poc/ecommerce-user-profile)
    • Input: user_id.
    • Output: User profile data (purchase history, browsing history, preferences).
  2. Orchestrator -> Product Catalog Agent (local-poc/ecommerce-product-catalog)
    • Input: Product IDs (e.g., from user history or context) or search term.
    • Output: Detailed product information.
  3. Orchestrator -> Trend Analysis Agent (local-poc/ecommerce-trend-analysis)
    • Input: Timeframe (e.g., "7d").
    • Output: List of trending product IDs and categories.
  4. Orchestrator (Aggregate Node): Combines results from the previous steps.
  5. Orchestrator -> Recommendation Engine Agent (local-poc/ecommerce-recommendation-engine)
    • Input: Aggregated context (user profile, relevant product details, trending data).
    • Output: List of personalized product recommendations with scores and reasoning.
  6. Orchestrator: Saves final recommendations and intermediate artifacts locally.

Components

  • poc_agents/ecommerce_pipeline/: Root directory for this POC.
    • ecommerce_user_profile_agent/: Mock agent providing user data.
    • ecommerce_product_catalog_agent/: Mock agent providing product details.
    • ecommerce_trend_analysis_agent/: Mock agent providing trending data.
    • ecommerce_recommendation_engine_agent/: Mock agent generating recommendations based on input.
    • ecommerce_pipeline_orchestrator/: LangGraph-based orchestrator managing the workflow.
    • docker-compose.yml: Runs all agents and the orchestrator.
    • documentation/: Contains explanatory documents (agent_implementations.md, fixes.md).

Setup

  1. Prerequisites: Docker, Docker Compose, Python 3.10+, Poetry. Ensure the agentvault_network Docker network exists (docker network create agentvault_network). The AgentVault Registry should also be running (typically via its own docker-compose.yml in the main agentvault_registry directory).
  2. Environment Variables: Review/create .env files within each agent directory and the orchestrator directory if specific configurations (like API keys for real agents) are needed. The orchestrator's .env requires AGENTVAULT_REGISTRY_URL.
  3. Build & Run Docker Compose:
    • Navigate to the poc_agents/ecommerce_pipeline/ directory.
    • Run: docker-compose build
    • Run: docker-compose up -d

Running the POC

The orchestrator can be triggered manually via docker exec.

  1. Wait for Services: Allow some time for all containers to start and initialize (e.g., 15-30 seconds).
  2. Execute Orchestrator:
    # Replace 'test-user-123' with any desired user ID
docker exec -it ecommerce-pipeline-orchestrator python -m ecommerce_orchestrator.run test-user-123
    (Note: The orchestrator currently uses a wrapper script (wrapper.py) as its entry point, which in turn calls run.py with a default user ID if none is provided via exec arguments. The command above explicitly passes the user ID)
  3. Monitor Logs: Observe the logs of the orchestrator and individual agents:
    docker logs -f ecommerce-pipeline-orchestrator
docker logs -f ecommerce-user-profile-agent
# etc.

Example Run (GIF)

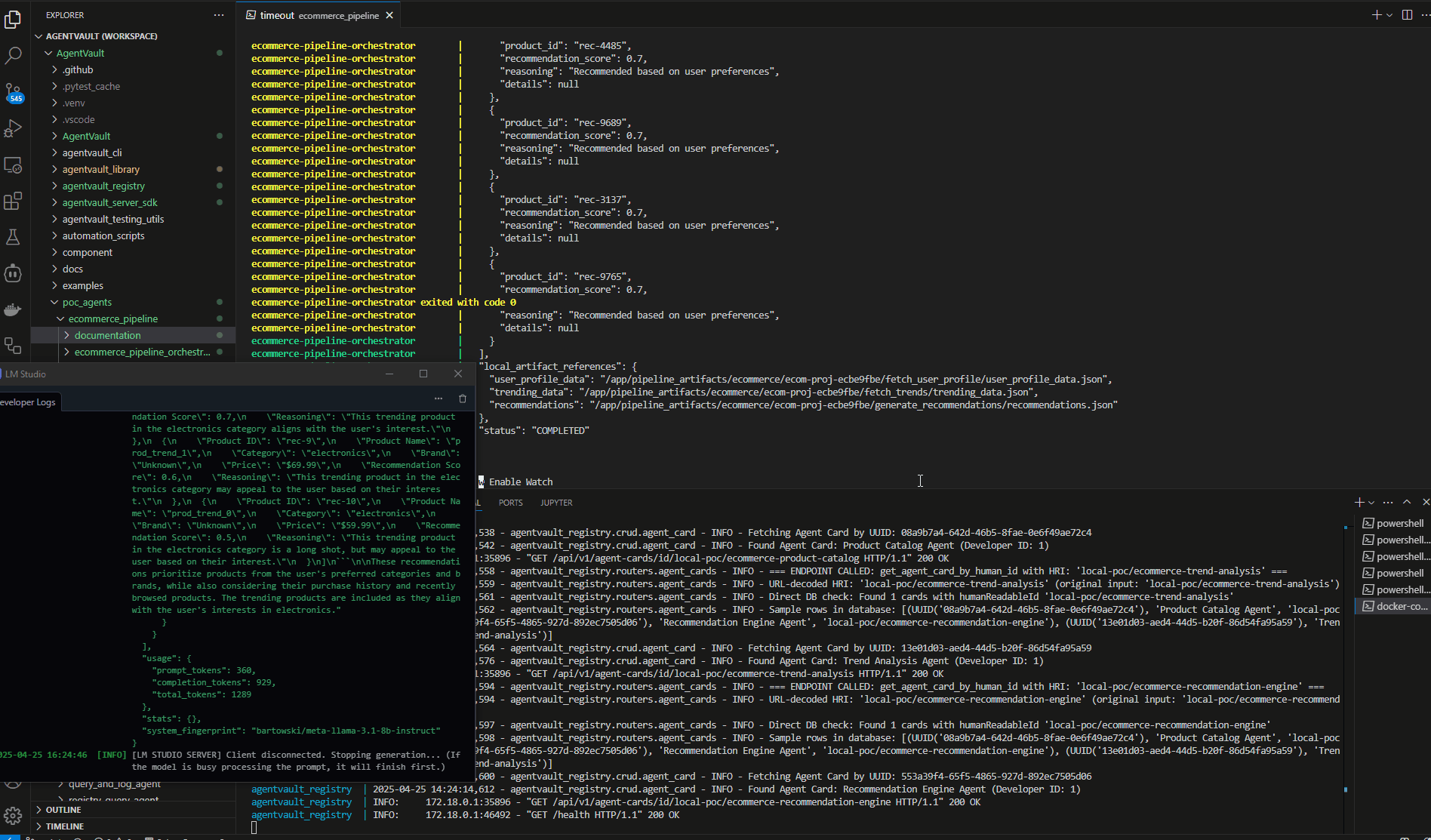

This animation shows the log output as the e-commerce orchestrator calls the various agents to gather context and finally generates recommendations.

E-commerce Pipeline Execution Example (Animation showing logs from the e-commerce orchestrator calling user profile, product catalog, trend analysis, and recommendation engine agents)

Expected Output

  • Orchestrator Logs: Show the pipeline steps: calling each agent, aggregating results, and generating the final recommendations.
  • Local Artifacts: Generated files stored in the mounted volume (poc_agents/ecommerce_pipeline/ecommerce_pipeline_orchestrator/pipeline_artifacts/ecommerce/<project_id>/).
  • Final State Output: The orchestrator prints the final state, including the list of recommendations.

Key Features Demonstrated

  • Multi-Agent Collaboration: Orchestrating multiple specialized agents for a complex task.
  • LangGraph Orchestration: Using LangGraph to define and manage the workflow state.
  • AgentVault Client Library: Used by the orchestrator (A2AClientWrapper) to interact with agents.
  • AgentVault Server SDK: Used by the individual agents to expose A2A endpoints.
  • Local Artifact Storage: Saving intermediate and final results to the local filesystem via Docker volumes.
  • Registry Discovery: The orchestrator uses the AgentVault Registry to find agent endpoints.
  • Docker Networking: Agents and orchestrator communicate using Docker service names.
