ETL Pipeline Example

This Proof-of-Concept (POC) demonstrates a simple Extract, Transform, Load (ETL) pipeline orchestrated using AgentVault and LangGraph.

Overview

The pipeline simulates processing data from a source (CSV file), transforming it, validating it, and loading it into a mock target. It highlights the use of a shared database for passing artifacts between agents, rather than sending large data payloads directly via A2A messages.

Workflow Diagram

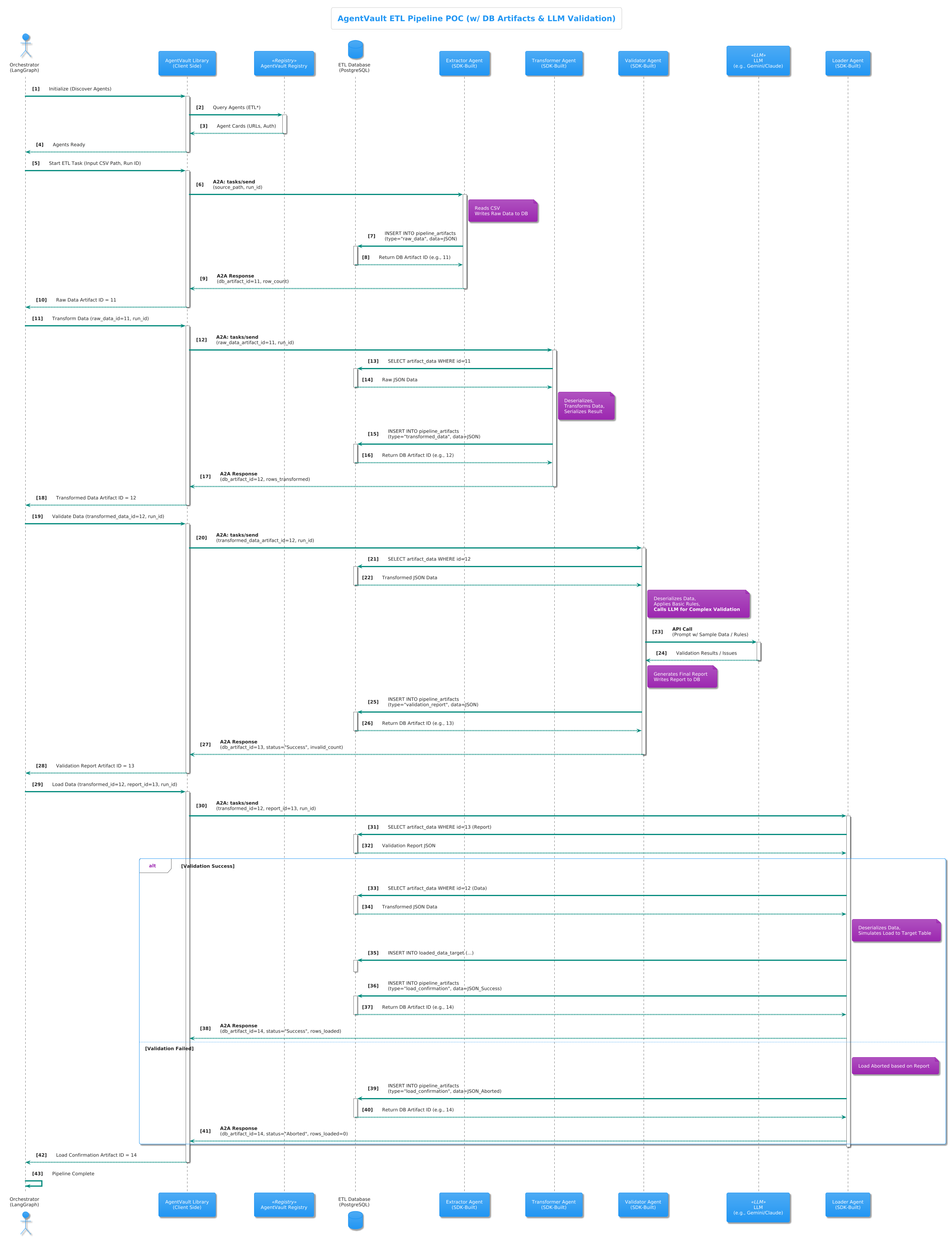

The diagram below shows the sequential flow of the ETL pipeline, where each agent passes the database ID of its output artifact to the next agent.

ETL Pipeline Workflow Diagram (Diagram illustrating the flow: Orchestrator calls Extractor, which saves to DB and returns ID. Orchestrator calls Transformer with ID, Transformer saves to DB and returns new ID, and so on for Validator and Loader.)

Workflow Steps

  1. Orchestrator (etl_orchestrator) -> Data Extractor Agent (local-poc/etl-data-extractor)
    • Input: Path to source CSV file (e.g., /data/input_data.csv), run_id.
    • Action: Reads CSV, stores raw data content (as JSON list of dicts) in the pipeline_artifacts database table.
    • Output: Database ID (artifact_db_id) of the stored raw data artifact, number of rows extracted.
  2. Orchestrator -> Data Transformer Agent (local-poc/etl-data-transformer)
    • Input: artifact_db_id of the raw data, run_id.
    • Action: Fetches raw data artifact from DB, performs transformations (e.g., rename columns, convert types), stores transformed data in DB.
    • Output: artifact_db_id of the stored transformed data artifact, number of rows transformed.
  3. Orchestrator -> Data Validator Agent (local-poc/etl-data-validator)
    • Input: artifact_db_id of the transformed data, run_id.
    • Action: Fetches transformed data artifact from DB, applies validation rules (e.g., check for required fields, valid values), stores validation report in DB.
    • Output: artifact_db_id of the stored validation report artifact, overall validation status (Success, Failed), number of invalid rows.
  4. Orchestrator -> Data Loader Agent (local-poc/etl-data-loader)
    • Input: artifact_db_id of transformed data, artifact_db_id of validation report, run_id.
    • Action: Fetches transformed data and validation report from DB. If validation status is "Success", simulates loading data into a mock target table (loaded_data_target) within the same DB. Stores a load confirmation artifact in DB.
    • Output: artifact_db_id of the stored load confirmation artifact, load status (Success, Aborted, Failed), rows processed, rows loaded.
  5. Orchestrator: Logs the final status and artifact IDs.

Components

  • poc_agents/etl_pipeline/: Root directory for this POC.
    • db/: Contains PostgreSQL initialization script (init.sql) to create the pipeline_artifacts table.
    • data/: Contains sample input CSV file (input_data.csv). Mounted into agent containers.
    • data_extractor_agent/: Agent to read CSV and store raw data artifact.
    • data_transformer_agent/: Agent to fetch, transform, and store transformed data artifact.
    • data_validator_agent/: Agent to fetch, validate, and store validation report artifact.
    • data_loader_agent/: Agent to fetch data/report, mock load, and store confirmation artifact.
    • etl_pipeline_orchestrator/: LangGraph-based orchestrator managing the workflow.
    • docker-compose.yml: Runs the PostgreSQL database, all agents, and the orchestrator.

Setup

  1. Prerequisites: Docker, Docker Compose, Python 3.10+, Poetry. Ensure the agentvault_network Docker network exists (docker network create agentvault_network). The AgentVault Registry should also be running.
  2. Database: The docker-compose.yml file defines a PostgreSQL service (etl-db) specifically for this pipeline's artifact storage. It will be created automatically.
  3. Environment Variables:
    • Each agent directory (data_extractor_agent, etc.) has an .env file containing the necessary DATABASE_* variables to connect to the etl-db service within the Docker network.
    • The orchestrator's .env needs AGENTVAULT_REGISTRY_URL.
  4. Input Data: Place your input CSV file (e.g., input_data.csv) inside the poc_agents/etl_pipeline/data/ directory. This directory is mounted into the extractor agent's container at /data.
  5. Build & Run Docker Compose:
    • Navigate to the poc_agents/etl_pipeline/ directory.
    • Run: docker-compose build
    • Run: docker-compose up -d

Running the POC

The orchestrator runs automatically on startup, triggered by the Dockerfile's CMD. It uses /data/input_data.csv as the default input file path.

  1. Monitor Logs: Observe the orchestrator's logs:
    docker logs -f etl-pipeline-orchestrator
    You can also check individual agent logs (e.g., docker logs -f etl-data-extractor-agent).
  2. Check Database: Connect to the etl-db container or use a DB client (connecting to localhost:5434) to inspect the pipeline_artifacts table and the loaded_data_target table (created by the loader).
    • User: etl_user
    • Password: etl_password
    • Database: etl_poc_db
    • Example Query: SELECT id, run_id, step_name, artifact_type, created_at FROM pipeline_artifacts ORDER BY created_at DESC;

Example Run (GIF)

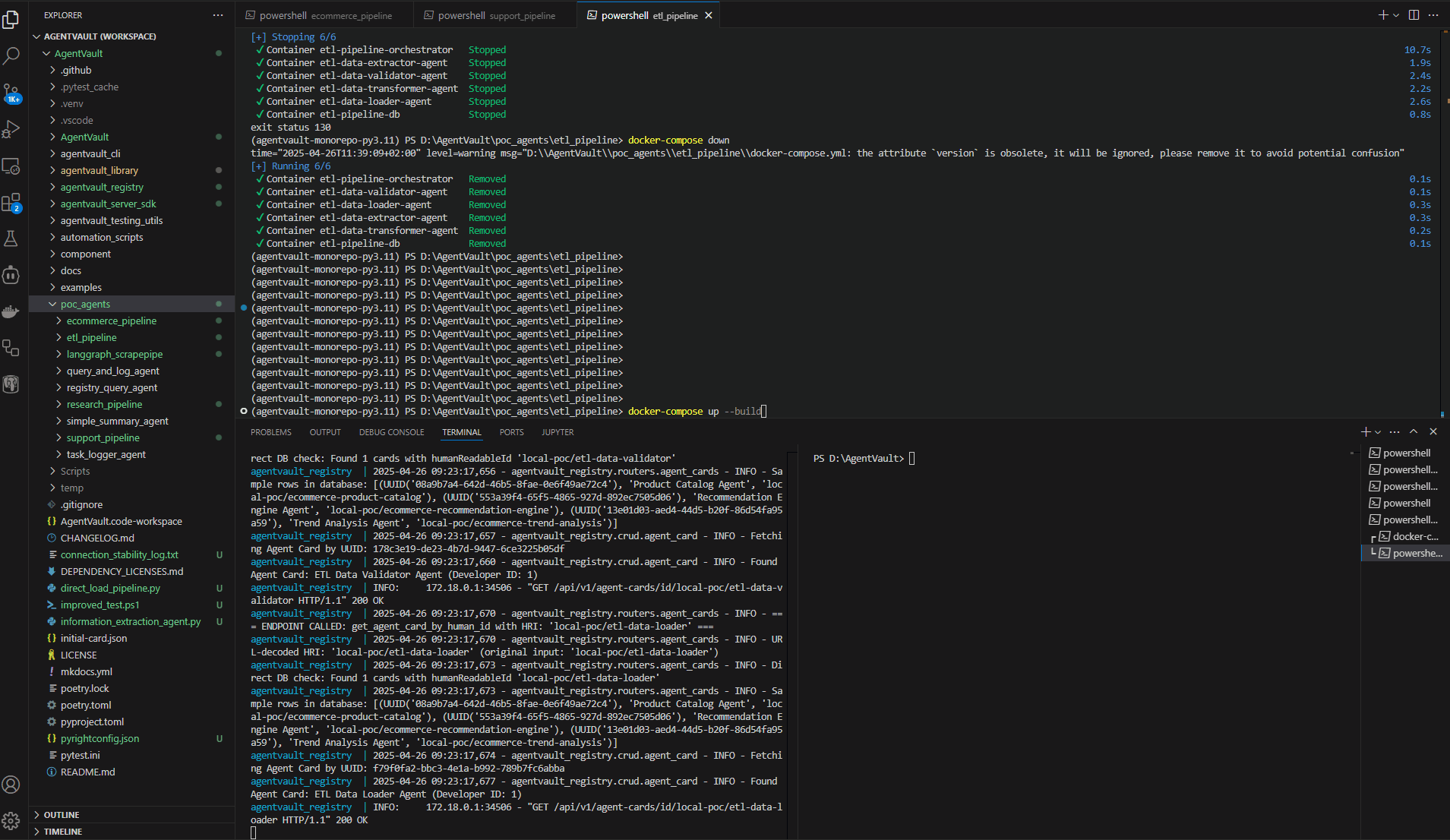

This animation demonstrates the typical log output from running the ETL pipeline via Docker Compose. It shows the orchestrator calling each agent sequentially and the agents logging their interactions with the database.

ETL Pipeline Execution Example (Animation showing logs from the orchestrator and ETL agents (Extractor, Transformer, Validator, Loader) interacting with the database)

Expected Output

  • Orchestrator Logs: Show the pipeline steps, agent calls, and the final status (COMPLETED or FAILED). It will list the database IDs for each artifact created.
  • pipeline_artifacts Table: Contains JSONB records for raw_data, transformed_data, validation_report, and load_confirmation.
  • loaded_data_target Table: Contains rows corresponding to the validated data if the pipeline completed successfully.

Key Features Demonstrated

  • Multi-Agent ETL Workflow: Orchestrating distinct ETL stages using specialized agents.
  • Database as Artifact Store: Using a database (PostgreSQL with JSONB) to pass data between agents instead of large A2A messages. Agents interact via artifact IDs.
  • LangGraph Orchestration: Defining the ETL flow as a state graph.
  • AgentVault Client/SDK: Used by orchestrator and agents for communication and task management.
  • Configuration: Using .env files for agent-specific database credentials and orchestrator configuration (etl_config.json).
  • Docker Networking & Volumes: Enabling communication between services and providing input data.
