SecOps Pipeline with Qwen3-8B LLM Integration

This Proof-of-Concept (POC) showcases an advanced Security Operations (SecOps) pipeline that leverages the Qwen3-8B large language model for intelligent security alert analysis, decision making, and automated response.

Overview

The SecOps pipeline processes security alerts through multiple stages including enrichment, LLM-powered investigation, response determination, and automated action execution. It demonstrates how LLMs can enhance security operations by providing sophisticated reasoning while maintaining full transparency in the decision-making process.

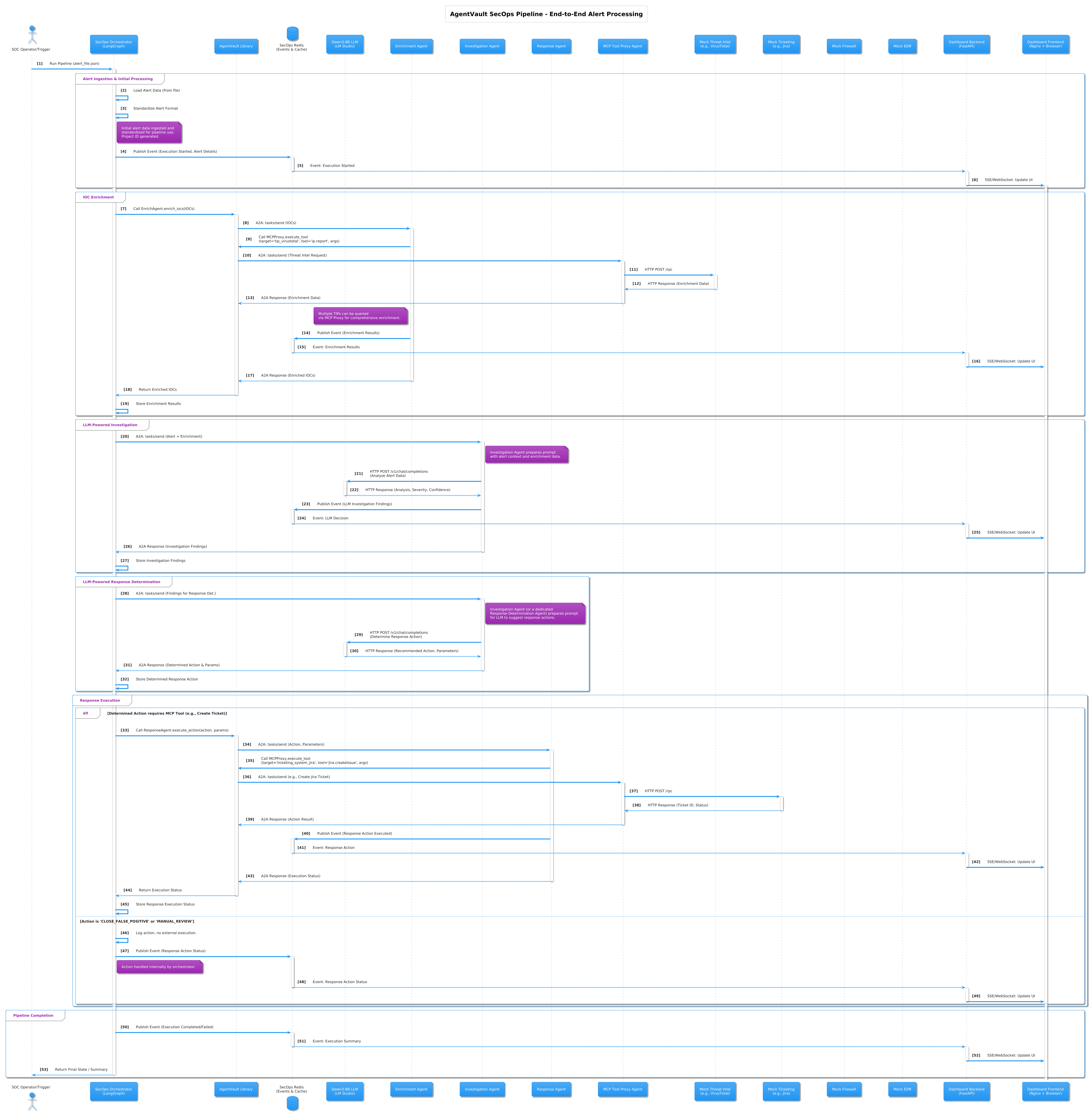

Workflow Diagram

The diagram below illustrates the flow of the SecOps pipeline, from alert ingestion through LLM analysis to response execution:

(Diagram showing the orchestrator coordinating the alert flow through the enrichment agent, investigation with Qwen3-8B LLM, response determination, and action execution)

Workflow Steps

1. Alert Ingestion and Standardization
2. Input: Raw security alert data from various sources (SIEM, EDR, etc.)
3. Process: Standardizes the alert format for consistent processing

4. Output: Standardized alert with extracted metadata

5. Enrichment Phase

6. Orchestrator → Enrichment Agent (secops-enrichment-agent)
7. Input: Standardized alert data with Indicators of Compromise (IoCs)
8. Process: Gathers context for IPs, domains, file hashes, and other IoCs

9. Output: Enrichment results with reputation, geolocation, and other contextual data

10. LLM Investigation

11. Input: Standardized alert + enrichment results
12. Process: Qwen3-8B LLM analyzes the alert data using sophisticated reasoning

13. Output: Severity assessment, confidence rating, and detailed reasoning explanation

14. Response Determination

15. Input: Investigation findings
16. Process: Qwen3-8B LLM determines appropriate response action based on findings

17. Output: Recommended action (ticket creation, IP blocking, host isolation, etc.)

18. Response Execution

19. Orchestrator → Response Agent (secops-response-agent)
20. Input: Determined response action and parameters
21. Process: Executes the recommended action via appropriate systems
22. Output: Execution status and details

Throughout the process, a real-time dashboard visualizes each step, displaying the enrichment data, LLM reasoning, and response actions.

Components

• secops-orchestrator: Coordinates the overall pipeline using LangGraph for state management
• secops-enrichment-agent: Gathers context for IoCs in security alerts
• secops-investigation-agent: Interface for LLM-powered alert analysis
• secops-response-agent: Executes determined response actions
• secops-dashboard: Real-time visualization of pipeline execution
• secops-redis: Event bus for real-time dashboard updates

LLM Integration Details

The SecOps pipeline integrates directly with the Qwen3-8B large language model through an OpenAI-compatible API. This integration provides:

• Real-time Security Analysis: Direct API calls to Qwen3-8B for sophisticated reasoning about security alerts
• Transparent Decision Making: Complete visibility into the LLM's reasoning process
• Severity Assessment: Contextual evaluation of alert severity and confidence level
• Response Determination: Intelligent selection of appropriate response actions
• Fallback Mechanisms: Robust error handling to ensure reliability even if LLM service is disrupted

The pipeline supports Qwen3-8B's /no_think directive for faster analysis when detailed reasoning isn't required, and includes comprehensive error handling with fallback to predefined responses if the LLM service is unavailable.

Setup

1. Prerequisites:
2. Docker and Docker Compose
3. Qwen3-8B model running with OpenAI-compatible API on port 1234

4. Created Docker network: docker network create agentvault_network

5. LLM Configuration:

6. Ensure Qwen3-8B model is accessible via OpenAI-compatible API

7. Configure environment variables in docker-compose.secops.yml:

   - LLM_API_URL=http://host.docker.internal:1234/v1
   - LLM_MODEL_NAME=qwen3-8b
   - LLM_TIMEOUT_SECONDS=120
   - RUNNING_IN_DOCKER=true


8. Start the Pipeline:

   # Start all components
   docker-compose -f docker-compose.secops.yml up -d

   # Process a sample alert
   docker-compose -f docker-compose.secops.yml run --rm secops-orchestrator --alert-file /app/input_alerts/sample_alert1.json


9. Access the Dashboard:

10. Navigate to http://localhost:8080/ to view the real-time dashboard

Example Run (GIF)

This animation demonstrates a complete SecOps pipeline execution, showing LLM-powered analysis and the interactive dashboard:

(Animation showing the processing of a security alert through the pipeline, including LLM reasoning and the interactive dashboard)

Supported Alert Types

The pipeline can process various security alert types:

1. Authentication Alerts: Failed login attempts, unusual login locations/times
2. Malware Detection: Ransomware, trojans, backdoors
3. Network Scanning: Port scans, vulnerability probing
4. Data Exfiltration: Unusual data transfers, insider threats

Response Actions

The LLM can determine and execute multiple response actions:

• CREATE_TICKET: Creates tickets in external ticketing systems
• BLOCK_IP: Blocks malicious IPs at the network perimeter
• ISOLATE_HOST: Isolates compromised systems from the network
• CLOSE_FALSE_POSITIVE: Dismisses alerts determined to be false positives
• MANUAL_REVIEW: Flags alerts requiring human analysis

Dashboard Features

The interactive dashboard provides:

• Pipeline Flow Visualization: Real-time status of each pipeline stage
• Enrichment Results Display: IoC lookup results and context
• LLM Analysis Section: Severity rating, confidence level, and detailed reasoning
• Response Action Panel: Executed action details and status
• Recent Executions List: History of pipeline runs with outcomes

Key Features Demonstrated

• LLM-Enhanced Security Operations: Using Qwen3-8B for sophisticated security reasoning
• LangGraph State Management: Resilient pipeline with proper state handling
• Real-time Visualization: Interactive dashboard showing pipeline execution
• Transparent AI Decision Making: Full visibility into LLM reasoning process
• Automated Security Response: End-to-end processing from alert to action
• Error Resilience: Fallback mechanisms for component failures

Advanced Usage

The pipeline can be extended with:

• Custom Alert Types: Create JSON alert files in input_alerts/
• Enhanced LLM Prompts: Modify llm_client.py to update analysis prompts
• Additional Response Actions: Extend the response agent to support new actions
• Integration with Security Tools: Connect to actual security infrastructure
